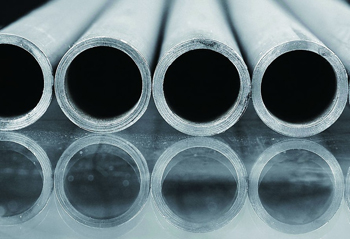

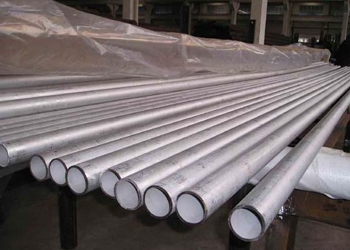

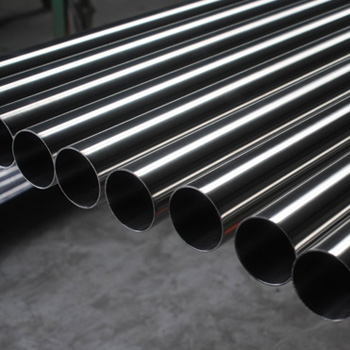

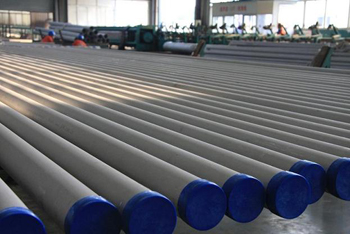

无缝不锈钢卷

材质：API SPEC 5L、ASTM A335/A335M、JIS G3467、DIN 17175、GB5310、GB/T9711等
长度：5.8、6M
最小起订量: 50吨

Type	Main material	Operational Standard	Specification	Use
Alloy Pipe	P5/T5、STFA25	GB5310-2008	∮16-426×2-90mm	Petroleum Chemical Industry, Electric Power, High Temperature Resistant,
	P11、P12、STFA22	GB9948-2006
	13CrMo44、12Cr1MoV	ASTM A335/A335M
	P22、10CrMo910	ASTM A213/A213M
	T91/P91、P9/T9	DIN17175-1979
	WB36	JISG3467-1988
		JISG3458-1988
High Pressure	20G、12Cr1MoVG、15CrMoG、ST45.8/III	GB5310-2008	∮16-824×2-65mm	Heat Resistant seamless Steel Pipe Used for High Pressure Boiler
Boiler Pipe		ASTM A106-1999
		DIN17175-1979
Petroleum	20、1Cr5Mo、15CrMo	GB9948-2006	∮10-530×1.5-36mm	Petroleum Refinery Furnace Tube, Heating Exchange Pipe, seamless Pipe Used in Conduit
Cracking Pipe	20、1Cr5Mo、15CrMo	GB9948-2006	∮10-530×1.5-36mm
Pipe for chemical fertilizer facility	20、16Mn、12Cr2Mo	GB6479-2000	∮25-426×6-40mm	Chemical Fertilizer Facility, Pipe
Low or Middle Pressure Boiler Pipe	10、20	GB3087-2008	∮10-426×2-40mm	Low Pressure Boiler Heating Exchange, Boiling Water Pipe, Vehicle Vent-pipes
Fluid Pipe	20、Q345	GB/T8163-2008	∮8-610×1.5-40mm	Fluid Transportation
Structure Pipe	20、45、40Cr、Q345	GB/T8162-2008	∮6-610×1.5-40mm	In General Structure
Pipe of Pipelines	B、X42、X52	API 5L-2000	∮40-325×3-40mm	Petroleum, Gas transportation
Hydraulic pressure Cylinder Pipe	20、45、27SiMn	GB/T17396-1998	∮70-377×12-40mm	Hydraulic Pressure Bracket
Manage ship	360、410	GB/T5312-1999	∮14-426×2-45mm	Make shipping to use and manage
Oil Pipe	J55、K55、N80、L80、P110	API 5CT-2005	∮60-114×4-12mm	Transmission oil pipeline
Drill Pipe	E75、X95、G105、S135	API 5D-2001	∮60-139×6-13mm	Oil well drilling
Casing Pipe	J55、K55、N80、L80、P110	API 5CT-2005	∮114-273×4-13mm	Oil well wall lining
